Appendix C to Part 121 - C-46 Nontransport Category Airplanes

Cargo Operations

1. Required engines. (a) Except as provided in paragraph (b) of this section, the engines specified in subparagraphs (1) or (2) of this section must be installed in C-46 nontransport category airplanes operated at gross weights exceeding 45,000 pounds:

(1) Pratt and Whitney R2800-51-M1 or R2800-75-M1 engines (engines converted from basic model R2800-51 or R2800-75 engines in accordance with FAA approved data) that --

(i) Conform to Engine Specification 5E-8;

(ii) Conform to the applicable portions of the operator's manual;

(iii) Comply with all the applicable airworthiness directives; and

(iv) Are equipped with high capacity oil pump drive gears in accordance with FAA approved data.

(2) Other engines found acceptable by the FAA Regional Flight Standards Division having type certification responsibility for the C-46 airplane.

(b) Upon application by an operator conducting cargo operations with nontransport category C-46 airplanes between points within the State of Alaska, the appropriate FAA Flight Standards District Office, Alaskan Region, may authorize the operation of such airplanes, between points within the State of Alaska; without compliance with paragraph (a) of this section if the operator shows that, in its area of operation, installation of the modified engines is not necessary to provide adequate cooling for single-engine operations. Such authorization and any conditions or limitations therefor is made a part of the Operations Specifications of the operator.

2. Minimum acceptable means of complying with the special airworthiness requirements. Unless otherwise authorized under 121.213, the data set forth in sections 3 through 34 of this appendix, as correlated to the C-46 nontransport category airplane, is the minimum means of compliance with the special airworthiness requirements of 121.215 through 121.281.

3. Susceptibility of material to fire. [Deleted as unnecessary]

4. Cabin interiors. C-46 crew compartments must meet all the requirements of 121.215, and, as required in 121.221, the door between the crew compartment and main cabin (cargo) compartment must be flame resistant.

5. Internal doors. Internal doors, including the crew to main cabin door, must meet all the requirements of 121.217.

6. Ventilation. Standard C-46 crew compartments meet the ventilation requirements of 121.219 if a means of ventilation for controlling the flow of air is available between the crew compartment and main cabin. The ventilation requirement may be met by use of a door between the crew compartment and main cabin. The door need not have louvers installed; however, if louvers are installed, they must be controllable.

7. Fire precautions. Compliance is required with all the provisions of 121.221.

(a) In establishing compliance with this section, the C-46 main cabin is considered as a Class A compartment if --

(1) The operator utilizes a standard system of cargo loading and tiedown that allows easy access in flight to all cargo in such compartment, and, such system is included in the appropriate portion of the operator's manual; and

(2) A cargo barrier is installed in the forward end of the main cabin cargo compartment. The barrier must --

(i) Establish the most forward location beyond which cargo cannot be carried;

(ii) Protect the components and systems of the airplane that are essential to its safe operation from cargo damage; and

(iii) Permit easy access, in flight, to cargo in the main cabin cargo compartment.

The barrier may be a cargo net or a network of steel cables or other means acceptable to the Administrator which would provide equivalent protection to that of a cargo net. The barrier need not meet crash load requirements of FAR 25.561; however, it must be attached to the cargo retention fittings and provide the degree of cargo retention that is required by the operators' standard system of cargo loading and tiedown.

(b) C-46 forward and aft baggage compartments must meet, as a minimum, Class B requirements of this section or be placarded in a manner to preclude their use as cargo or baggage compartments.

8. Proof of compliance. The demonstration of compliance required by 121.223 is not required for C-46 airplanes in which --

(1) The main cabin conforms to Class A cargo compartment requirements of 121.219; and

(2) Forward and aft baggage compartments conform to Class B requirements of 121.221, or are placarded to preclude their use as cargo or baggage compartments.

9. Propeller deicing fluid. No change from the requirements of 121.225. Isopropyl alcohol is a combustible fluid within the meaning of this section.

10. Pressure cross-feed arrangements, location of fuel tanks, and fuel system lines and fittings. C-46 fuel systems which conform to all applicable Curtiss design specifications and which comply with the FAA type certification requirements are in compliance with the provisions of 121.227 through 121.231.

11. Fuel lines and fittings in designated fire zones. No change from the requirements of 121.233.

12. Fuel valves. Compliance is required with all the provisions of 121.235. Compliance can be established by showing that the fuel system conforms to all the applicable Curtiss design specifications, the FAA type certification requirements, and, in addition, has explosion-proof fuel booster pump electrical selector switches installed in lieu of the open contact type used originally.

13. Oil lines and fittings in designated fire zones. No change from the requirements of 121.237.

14. Oil valves. C-46 oil shutoff valves must conform to the requirements of 121.239. In addition, C-46 airplanes using Hamilton Standard propellers must provide, by use of stand pipes in the engine oil tanks or other approved means, a positive source of oil for feathering each propeller.

15. Oil system drains. The standard C-46 "Y" drains installed in the main oil inlet line for each engine meet the requirements of 121.241.

16. Engine breather line. The standard C-46 engine breather line installation meets the requirements of 121.243 if the lower breather lines actually extend to the trailing edge of the oil cooler air exit duct.

17. Firewalls and firewall construction. Compliance is required with all of the provisions of 121.245 and 121.247. The following requirements must be met in showing compliance with these sections:

(a) Engine compartment. The engine firewalls of the C-46 airplane must --

(1) Conform to type design, and all applicable airworthiness directives;

(2) Be constructed of stainless steel or approved equivalent; and

(3) Have fireproof shields over the fairleads used for the engine control cables that pass through each firewall.

(b) Combustion heater compartment. C-46 airplanes must have a combustion heater fire extinguishing system which complies with AD-49-18-1 or an FAA approved equivalent.

18. Cowling. Standard C-46 engine cowling (cowling of aluminum construction employing stainless steel exhaust shrouds) which conforms to the type design and cowling configurations which conform to the C-46 transport category requirements meet the requirements of 121.249.

19. Engine accessory section diaphragm. C-46 engine nacelles which conform to the C-46 transport category requirements meet the requirements of 121.251. As provided for in that section, a means of equivalent protection which does not require provision of a diaphragm to isolate the engine power section and exhaust system from the engine accessory compartment is the designation of the entire engine compartment forward of and including the firewall as a designated fire zone, and the installation of adequate fire detection and fire extinguishing systems which meet the requirements of 121.263 and 121.273, respectively, in such zone.

20. Powerplant fire protection. C-46 engine compartments and combustion heater compartments are considered as designated fire zones within the meaning of 121.253.

21. Flammable fluids --

(a) Engine compartment. C-46 engine compartments which conform to the type design and which comply with all applicable airworthiness directives meet the requirements of 121.255.

(b) Combustion heater compartment. C-46 combustion heater compartments which conform to type design and which meet all the requirements of AD-49-18-1 or an FAA approved equivalent meet the requirements of 121.255.

22. Shutoff means --

(a) Engine compartment. C-46 engine compartments which comply with AD-62-10-2 or FAA approved equivalent meet the requirements of 121.257 applicable to engine compartments, if, in addition, a means satisfactory to the Administrator is provided to shut off the flow of hydraulic fluid to the cowl flap cylinder in each engine nacelle. The shutoff means must be located aft of the engine firewall. The operator's manual must include, in the emergency portion, adequate instructions for proper operation of the additional shutoff means to assure correct sequential positioning of engine cowl flaps under emergency conditions. In accordance with 121.315, this positioning must also be incorporated in the emergency section of the pilot's checklist.

(b) Combustion heater compartment. C-46 heater compartments which comply with paragraph (5) of AD-49-18-1 or FAA approved equivalent meet the requirements of 121.257 applicable to heater compartments if, in addition, a shutoff valve located above the main cabin floor level is installed in the alcohol supply line or lines between the alcohol supply tank and those alcohol pumps located under the main cabin floor. If all of the alcohol pumps are located above the main cabin floor, the alcohol shutoff valve need not be installed. In complying with paragraph (5) of AD-49-18-1, a fail-safe electric fuel shutoff valve may be used in lieu of the manually operated valve.

23. Lines and fittings. -- (a) Engine compartment. C-46 engine compartments which comply with all applicable airworthiness directives, including AD-62-10-2, by using FAA approved fire-resistant lines, hoses, and end fittings, and engine compartments which meet the C-46 transport category requirements, meet the requirements of 121.259.

(b) Combustion heater compartments All lines, hoses, and end fittings, and couplings which carry fuel to the heaters and heater controls, must be of FAA approved fire-resistant construction.

24. Vent and drain lines. -- (a) Enginecompartment. C-46 engine compartments meet the requirements of 121.261 if --

(1) The compartments conform to type design and comply with all applicable airworthiness directives or FAA approved equivalent; and

(2) Drain lines from supercharger case, engine-driven fuel pump, and engine-driven hydraulic pump reach into the scupper drain located in the lower cowling segment.

(b) Combustion heater compartment. C-46 heater compartments meet the requirements of 121.261 if they conform to AD-49-18-1 or FAA approved equivalent.

25. Fire-extinguishing system. (a) To meet the requirements of 121.263, C-46 airplanes must have installed fire extinguishing systems to serve all designated fire zones. The fire-extinguishing systems, the quantity of extinguishing agent, and the rate of discharge shall be such as to provide a minimum of one adequate discharge for each designated fire zone. Compliance with this provision requires the installation of a separate fire extinguisher for each engine compartment. Insofar as the engine compartment is concerned, the system shall be capable of protecting the entire compartment against the various types of fires likely to occur in the compartment.

(b) Fire-extinguishing systems which conform to the C-46 transport category requirements meet the requirements set forth in paragraph (a). Furthermore, fire-extinguishing systems for combustion heater compartments which conform to the requirements of AD-49-18-1 or an FAA approved equivalent also meet the requirements in paragraph (a).

In addition, a fire-extinguishing system for C-46 airplanes meets the adequacy requirement of paragraph (a) if it provides the same or equivalent protection to that demonstrated by the CAA in tests conducted in 1941 and 1942, using a CW-20 type engine nacelle (without diaphragm). These tests were conducted at the Bureau of Standards facilities in Washington, DC, and copies of the test reports are available through the FAA Regional Engineering Offices. In this connection, the flow rates and distribution of extinguishing agent substantiated in American Airmotive Report No. 128-52-d, FAA approved February 9, 1953, provides protection equivalent to that demonstrated by the CAA in the CW-20 tests. In evaluating any C-46 fire-extinguishing system with respect to the aforementioned CW-20 tests, the Administration would require data in a narrative form, utilizing drawings or photographs to show at least the following:

Installation of containers; installation and routing of plumbing; type, number, and location of outlets or nozzles; type, total volume, and distribution of extinguishing agent; length of time required for discharging; means for thermal relief, including type and location of discharge indicators; means of discharging, e.g., mechanical cutterheads, electric cartridge, or other method; and whether a one- or two-shot system is used; and if the latter is used, means of cross-feeding or otherwise selecting distribution of extinguishing agent; and types of materials used in makeup of plumbing.

High rate discharge (HRD) systems using agents such as bromotrifluoromethane, dibrodifluoromethane and chlorobromomethane (CB), may also meet the requirements of paragraph (a).

26. Fire-extinguishing agents, Extinguishing agent container pressure relief, Extinguishing agent container compartment temperatures, and Fire-extinguishing system materials. No change from the requirements of 121.265 through 121.271.

27. Fire-detector system. Compliance with the requirements of 121.273 requires that C-46 fire detector systems conform to:

(a) AD-62-10-2 or FAA approved equivalent for engine compartments; and

(b) AD-49-18-1 or FAA approved equivalent for combustion heater compartments

28. Fire detectors. No change from the requirements of 121.275.

29. Protection of other airplane components against fire. To meet the requirements of 121.277, C-46 airplanes must --

(a) Conform to the type design and all applicable airworthiness directives; and

(b) Be modified or have operational procedures established to provide additional fire protection for the wheel well door aft of each engine compartment. Modifications may consist of improvements in sealing of the main landing gear wheel well doors. An operational procedure which is acceptable to the Agency is one requiring the landing gear control to be placed in the up position in case of in-flight engine fire. In accordance with 121.315, such procedure must be set forth in the emergency portion of the operator's emergency checklist pertaining to in-flight engine fire.

30. Control of engine rotation. C-46 propeller feathering systems which conform to the type design and all applicable airworthiness directives meet the requirements of 121.279.

31. Fuel system independence. C-46 fuel systems which conform to the type design and all applicable airworthiness directives meet the requirements of 121.281.

32. Induction system ice prevention. The C-46 carburetor anti-icing system which conforms to the type design and all applicable airworthiness directives meets the requirements of 121.283.

33. Carriage of cargo in passenger compartments. Section 121.285 is not applicable to nontransport category C-46 cargo airplanes.

34. Carriage of cargo in cargo compartments. A standard cargo loading and tiedown arrangement set forth in the operator's manual and found acceptable to the Administrator must be used in complying with 121.287.

35. Performance data. Performance data on Curtiss model C-46 airplane certificated for maximum weight of 45,000 and 48,000 pounds for cargo-only operations.

1. The following performance limitation data, applicable to the Curtiss model C-46 airplane for cargo-only operation, must be used in determining compliance with 121.199 through 121.205. These data are presented in the tables and figures of this appendix.

TABLE 1 -- TAKEOFF LIMITATIONS

(a) Curtiss C-46 certificated for maximum weight of 45,000 pounds.

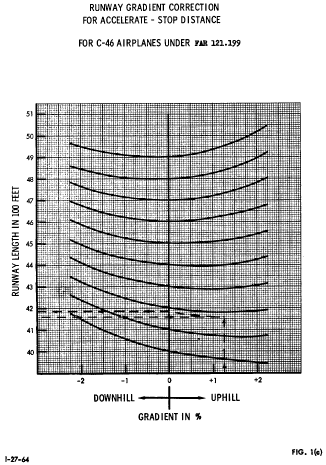

(1) Effective length of runway required when effective length is determined in accordance with 121.171 (distance to accelerate to 93 knots TIAS and stop, with zero wind and zero gradient). (Factor=1.00)

                           [Distance in feet]
------------------------------------------------------------------------
                                              Airplane weight in pounds
                                           -----------------------------
         Standard altitude in feet                               45,000
                                             39,000    42,000      \1\
------------------------------------------------------------------------
S.L.......................................     4,110     4,290     4,570
1,000.....................................     4,250     4,440     4,720
2,000.....................................     4,400     4,600     4,880
3,000.....................................     4,650     4,880     5,190
4,000.....................................     4,910     5,170     5,500
5,000.....................................     5,160     5,450     5,810
6,000.....................................     5,420     5,730     6,120
7,000.....................................     5,680     6,000     6,440
8,000.....................................     5,940     6,280     (\1\)
------------------------------------------------------------------------

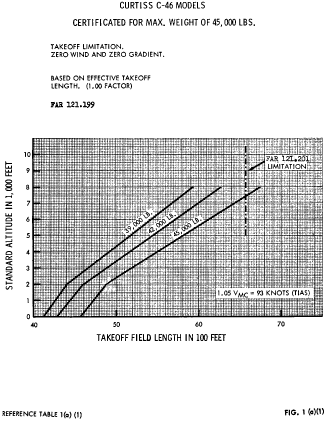

\1\ Ref. Fig. 1(a)(1) for weight and distance for altitudes above
  7,000[foot].

(2) Actual length of runway required when effective length, considering obstacles, is not determined (distance to accelerate to 93 knots TIAS and stop, divided by the factor 0.85).

                           [Distance in feet]
------------------------------------------------------------------------
                                              Airplane weight in pounds
                                           -----------------------------
         Standard altitude in feet                               45,000
                                             39,000    42,000      \1\
------------------------------------------------------------------------
S.L.......................................     4,830     5,050     5,370
1,000.....................................     5,000     5,230     5,550
2,000.....................................     5,170     5,410     5,740
3,000.....................................     5,470     5,740     6,100
4,000.....................................     5,770     6,080     6,470
5,000.....................................     6,070     6,410     6,830
6,000.....................................     6,380     6,740     7,200
7,000.....................................     6,680     7,070     7,570
8,000.....................................     6,990     7,410     (\1\)
------------------------------------------------------------------------

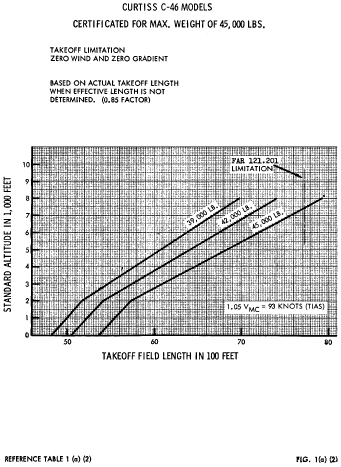

\1\ Ref. Fig. 1(a)(2) for weight and distance for altitudes above
  7,000[foot].

(b) Curtiss C-46 certificated for maximum weight 48,000 pounds.

(1) Effective length of runway required when effective length is determined in accordance with 121.171 (distance to accelerate to 93 knots TIAS and stop, with zero wind and zero gradient). (Factor=1.00)

                           [Distance in feet]
------------------------------------------------------------------------
                                         Airplane weight in pounds
                                 ---------------------------------------
    Standard altitude in feet                                    48,000
                                   39,000    42,000    45,000      \1\
------------------------------------------------------------------------
S.L.............................     4,110     4,290     4,570     4,950
1,000...........................     4,250     4,440     4,720     5,130
2,000...........................     4,400     4,600     4,880     5,300
3,000...........................     4,650     4,880     5,190     5,670
4,000...........................     4,910     5,170     5,500     6,050
5,000...........................     5,160     5,450     5,810     6,420
6,000...........................     5,420     5,730     6,120     6,800
7,000...........................     5,680     6,000     6,440     (\1\)
8,000...........................     5,940     6,280     6,750     (\1\)
------------------------------------------------------------------------

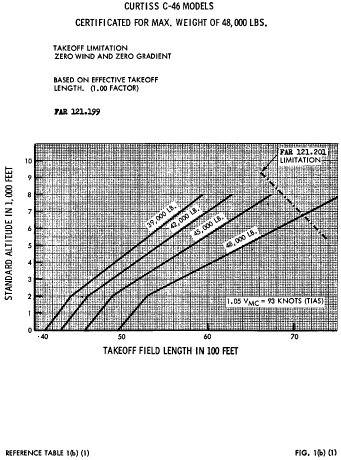

\1\ Ref. Fig. 1(b)(1) for weight and distance for altitudes above
  6,000[foot].

(2) Actual length of runway required when effective length, considering obstacles, is not determined (distance to accelerate to 93 knots TIAS and stop, divided by the factor 0.85).

                           [Distance in feet]
------------------------------------------------------------------------
                                         Airplane weight in pounds
                                 ---------------------------------------
    Standard altitude in feet                                    48,000
                                   39,000    42,000    45,000      \1\
------------------------------------------------------------------------
S.L.............................     4,830     5,050     5,370     5,830
1,000...........................     5,000     5,230     5,550     6,030
2,000...........................     5,170     5,410     5,740     6,230
3,000...........................     5,470     5,740     6,100     6,670
4,000...........................     5,770     6,080     6,470     7,120
5,000...........................     6,070     6,410     6,830     7,560
6,000...........................     6,380     6,740     7,200     8,010
7,000...........................     6,680     7,070     7,570     (\1\)
8,000...........................     6,990     7,410     7,940     (\1\)
------------------------------------------------------------------------

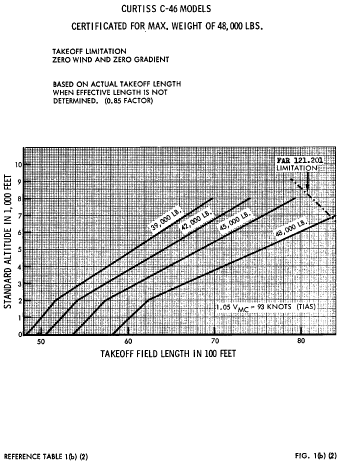

\1\ Ref. Fig. 1(b)(2) for weight and distance for altitudes above
  6,000[foot].

TABLE 2 -- EN ROUTE LIMITATIONS

(a) Curtiss model C-46 certificated for maximum weight of 45,000 pounds (based on a climb speed of 113 knots (TIAS)).

------------------------------------------------------------------------
                                          Terrain
            Weight (pounds)              clearance     Blower setting
                                        (feet) \1\
------------------------------------------------------------------------
45,000................................       6,450  Low.
44,000................................       7,000   Do.
43,000................................       7,500   Do.
42,200................................       8,000  High.
41,000................................       9,600   Do.
40,000................................      11,000   Do.
39,000................................      12,300   Do.
------------------------------------------------------------------------
\1\ Highest altitude of terrain over which airplanes may be operated in
  compliance with  121.201.

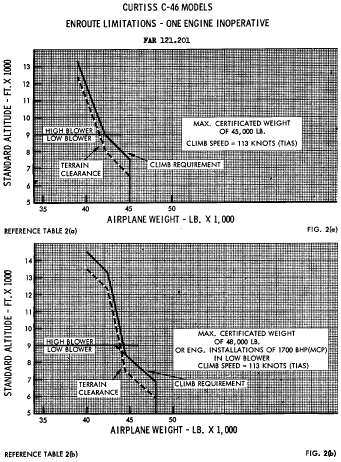

Ref. Fig. 2(a).

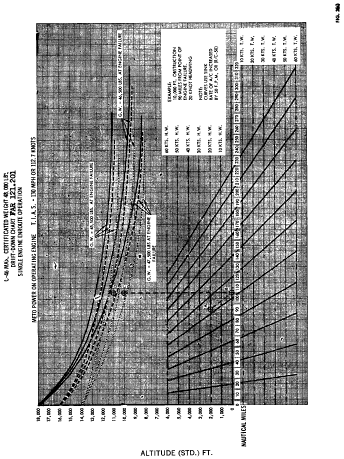

(b) Curtiss model C-46 certificated for maximum weight of 48,000 pounds or with engine installation approved for 2,550 revolutions per minute (1,700 brake horsepower). Maximum continuous power in low blower (based on a climb speed of 113 knots (TIAS)).

------------------------------------------------------------------------
                                          Terrain
            Weight (pounds)              clearance     Blower setting
                                        (feet) \1\
------------------------------------------------------------------------
48,000................................       5,850  Low.
47,000................................       6,300   Do.
46,000................................       6,700   Do.
45,000................................       7,200   Do.
44,500................................       7,450   Do.
44,250................................       8,000  High.
44,000................................       8,550   Do.
43,000................................      10,800   Do.
42,000................................      12,500   Do.
41,000................................      13,000   Do.
------------------------------------------------------------------------
\1\ Highest altitude of terrain over which airplanes may be operated in
  compliance with  121.201.

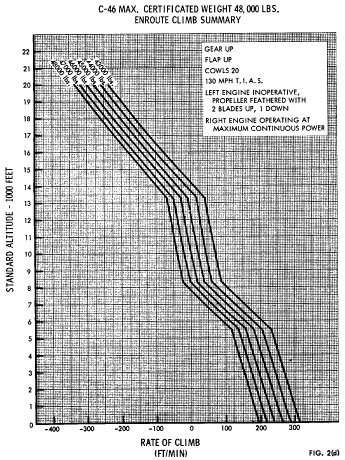

Ref. Fig. 2(b).

TABLE 3 -- LANDING LIMITATIONS

(a) Intended Destination.

Effective length of runway required for intended destination when effective length is determined in accordance with 121.171 with zero wind and zero gradient.

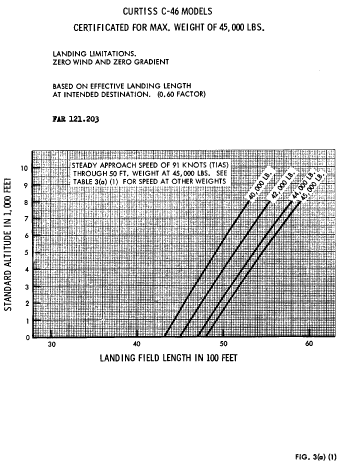

(1) Curtiss model C-46 certificated for maximum weight of 45,000 pounds.      (0.60 factor)

                                                Distance in feet
----------------------------------------------------------------------------------------------------------------
                                                    Airplane weight in pounds and approach speeds \1\ in knots
            Standard altitude in feet            ---------------------------------------------------------------
                                                   40,000   V50    42,000   V50    44,000   V50    45,000   V50
----------------------------------------------------------------------------------------------------------------
S.L.............................................    4,320     86    4,500     88    4,700     90    4,800     91
1,000...........................................    4,440     86    4,620     88    4,830     90    4,930     91
2,000...........................................    4,550     86    4,750     88    4,960     90    5,050     91
3,000...........................................    4,670     86    4,880     88    5,090     90    5,190     91
4,000...........................................    4,800     86    5,000     88    5,220     90    5,320     91
5,000...........................................    4,920     86    5,140     88    5,360     90    5,460     91
6,000...........................................    5,040     86    5,270     88    5,550     90    5,600     91
7,000...........................................    5,170     86    5,410     88    5,650     90    5,750     91
8,000...........................................    5,310     86    5,550     88    5,800     90    5,900     91
----------------------------------------------------------------------------------------------------------------
\1\ Steady approach speed through 50-foot height TIAS denoted by symbol V50.
Ref. Fig. 3(a)(1).

(2) Curtiss model C-46 certificated for maximum weight of 48,000 pounds. 1      (0.60 factor.)

                                                Distance in feet
----------------------------------------------------------------------------------------------------------------
                                                    Airplane weight in pounds and approach speeds \2\ in knots
            Standard altitude in feet            ---------------------------------------------------------------
                                                   42,000   V50    44,000   V50    46,000   V50    43,000   V50
----------------------------------------------------------------------------------------------------------------
S.L.............................................    3,370     80    3,490     82    3,620     84    3,740     86
1,000...........................................    3,460     80    3,580     82    3,710     84    3,830     86
2,000...........................................    3,540     80    3,670     82    3,800     84    3,920     86
3,000...........................................    3,630     80    3,760     82    3,890     84    4,020     86
4,000...........................................    3,720     80    3,850     82    3,980     84    4,110     86
5,000...........................................    3,800     80    3,940     82    4,080     84    4,220     86
6,000...........................................    3,890     80    4,040     82    4,180     84    4,320     86
7,000...........................................    3,980     80    4,140     82    4,280     84    4,440     86
8,000...........................................    4,080     80    4,240     82    4,390     84    4,550     86
----------------------------------------------------------------------------------------------------------------
\1\ For use with Curtiss model C-46 airplanes when approved for this weight.
\2\ Steady approach speed through 50 height knots TIAS denoted by symbol V503.

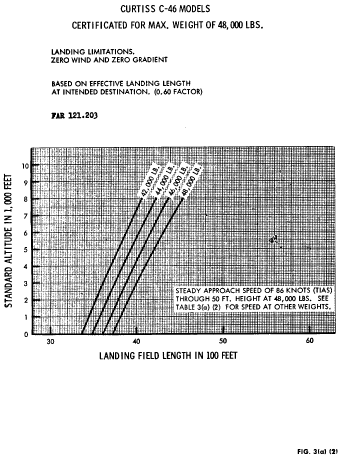

Ref. Fig. 3(a)(2).

(b) Alternate Airports.

Effective length of runway required when effective length is determined in accordance with 121.171 with zero wind and zero gradient.

(1) Curtiss model C-46 certificated for maximum weight of 45,000 pounds.      (0.70 factor.)

                                                Distance in feet
----------------------------------------------------------------------------------------------------------------
                                                    Airplane weight in pounds and approach speeds \1\ in knots
            Standard altitude in feet            ---------------------------------------------------------------
                                                   40,000   V50    42,000   V50    44,000   V50    45,000   V50
----------------------------------------------------------------------------------------------------------------
S.L.............................................    3,700     86    3,860     88    4,030     90    4,110     91
1,000...........................................    3,800     86    3,960     88    4,140     90    4,220     91
2,000...........................................    3,900     86    4,070     88    4,250     90    4,340     91
3,000...........................................    4,000     86    4,180     88    4,360     90    4,450     91
4,000...........................................    4,110     86    4,290     88    4,470     90    4,560     91
5,000...........................................    4,210     86    4,400     88    4,590     90    4,680     91
6,000...........................................    4,330     86    4,510     88    4,710     90    4,800     91
7,000...........................................    4,430     86    4,630     88    4,840     90    4,930     91
8,000...........................................    4,550     86    4,750     88    4,970     90    5,060     91
----------------------------------------------------------------------------------------------------------------
\1\ Steady approach speed through 50 foot-height-knots TIAS denoted by symbol V50.

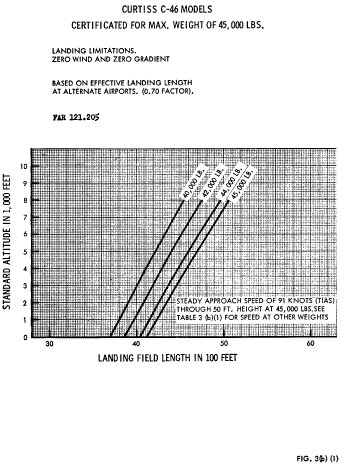

Ref. Fig. 3(b)(1).

(2) Curtiss model C-46 certificated for maximum weight of 48,000 pounds. 1      (0.70 factor.)

                                                Distance in feet
----------------------------------------------------------------------------------------------------------------
                                                    Airplane weight in pounds and approach speeds \2\ in knots
            Standard altitude in feet            ---------------------------------------------------------------
                                                   42,000   V50    44,000   V50    46,000   V50    48,000   V50
----------------------------------------------------------------------------------------------------------------
S.L.............................................    2,890     80    3,000     82    3,110     84    3,220     86
1,000...........................................    2,960     80    3,070     82    3,180     84    3,280     86
2,000...........................................    3,040     80    3,150     82    3,260     84    3,360     86
3,000...........................................    3,110     80    3,220     82    3,340     84    3,440     86
4,000...........................................    3,180     80    3,300     82    3,410     84    3,520     86
5,000...........................................    3,260     80    3,380     82    3,500     84    3,610     86
6,000...........................................    3,330     80    3,460     82    3,580     84    3,700     86
7,000...........................................    3,420     80    3,540     82    3,670     84    3,800     86
8,000...........................................    3,500     80    3,630     82    3,760     84    3,900     86
----------------------------------------------------------------------------------------------------------------
\1\ For use with Curtiss model C-46 airplanes when approved for this weight.
\2\ Steady approach speed through 50 foot-height-knots TIAS denoted by symbol V50.

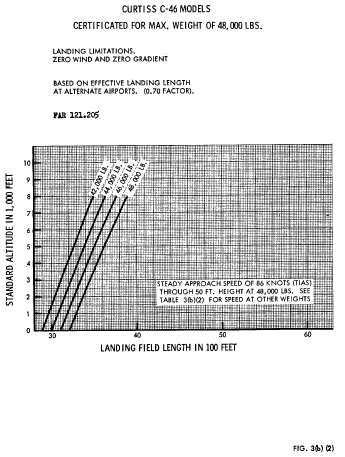

Ref. Fig. 3(b)(2).

(c) Actual length of runway required when effective length, considering obstacles, is not determined in accordance with 121.171.

(1) Curtiss model C-46 certificated for maximum weight of 45,000 pounds.      (0.55 factor.)

                                                Distance in feet
----------------------------------------------------------------------------------------------------------------
                                                    Airplane weight in pounds and approach speeds \1\ in knots
            Standard altitude in feet            ---------------------------------------------------------------
                                                   40,000   V50    42,000   V50    44,000   V50    45,000   V50
----------------------------------------------------------------------------------------------------------------
S.L.............................................    4,710     86    4,910     88    5,130     90    5,230     91
1,000...........................................    4,840     86    5,050     88    5,270     90    5,370     91
2,000...........................................    4,960     86    5,180     88    5,410     90    5,510     91
3,000...........................................    5,090     86    5,320     88    5,550     90    5,660     91
4,000...........................................    5,230     86    5,460     88    5,700     90    5,810     91
5,000...........................................    5,360     86    5,600     88    5,850     90    5,960     91
6,000...........................................    5,500     86    5,740     88    6,000     90    6,110     91
7,000...........................................    5,640     86    5,900     88    6,170     90    6,280     91
8,000...........................................    5,790     86    6,050     88    6,340     90    6,450     91
----------------------------------------------------------------------------------------------------------------
\1\ Steady approach speed through 50 foot-height-knots TIAS denoted by symbol V50.
Ref. Fig. 3(c)(1).

(2) Curtiss C-46 certificated for maximum weight of 48,000 pounds. 1      (0.55 factor.)

                                                Distance in feet
----------------------------------------------------------------------------------------------------------------
                                                    Airplane weight in pounds and approach speeds \2\ in knots
            Standard altitude in feet            ---------------------------------------------------------------
                                                   42,000   V50    44,000   V50    46,000   V50    48,000   V50
----------------------------------------------------------------------------------------------------------------
S.L.............................................    3,680     80    3,820     82    3,960     84    4,090     86
1,000...........................................    3,770     80    3,910     82    4,050     84    4,180     86
2,000...........................................    3,860     80    4,000     82    4,140     84    4,280     86
3,000...........................................    3,960     80    4,090     82    4,240     84    4,380     86
4,000...........................................    4,050     80    4,190     82    4,340     84    4,490     86
5,000...........................................    4,150     80    4,290     82    4,450     84    4,600     86
6,000...........................................    4,240     80    4,400     82    4,560     84    4,710     86
7,000...........................................    4,350     80    4,510     82    4,670     84    4,840     86
8,000...........................................    4,450     80    4,620     82    4,790     84    4,960     86
----------------------------------------------------------------------------------------------------------------
\1\ For use with Curtiss model C-46 airplanes when approved for this weight.
\2\ Steady approach speed through 50 foot-height-knots TIAS denoted by symbol V50.

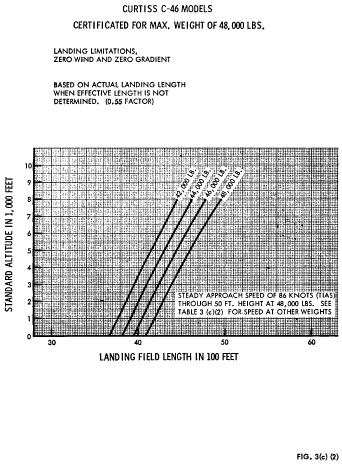

Ref. Fig. 3(c)(2).



















[Doc. No. 4080, 30 FR 258, Jan. 3, 1965; 30 FR 481, Jan. 14, 1965, as amended by Amdt. 121-207, 54 FR 39293, Sept. 25, 1989]
