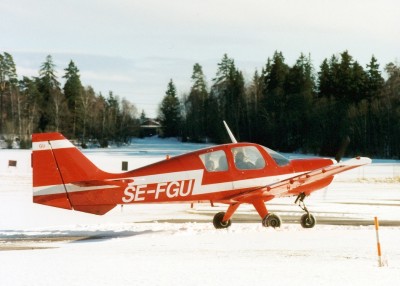

the Beagle Pup 150
Specifications
Pup-150 (B.121 Series 2)
Generally similar to the Pup-100, with standard
accommodation for a third adult or two children.
Powered by 150 hp Lycoming 0-320-A2B four cylinder
engine, driving a Sensenich type M.74 DMS-0-60 two
blade fixed-pitch metal propeller, diameter 1.88m.
Standard fuel capacity 24 Imp. gallons (109
litres), with optional increase to 34 Imp. gallons
(155 litres).
|
Dimensions, External |
|
Wing span |
31ft 0in |
(9.45m) |
|
Length overall |
23ft 2in |
(7.06m) |
|
Height overall |
7ft 6in |
(2.29m) |
|
Tailplane span |
11ft 0in |
(3.35m) |
|
Wheel track |
7ft 0in |
(2.13m) |
|
Wheelbase |
4ft 7in |
(1.40m) |
|
Cabin door (each) |
|
Height (mean) |
3ft 0in |
(0.91m) |
|
Width (mean) |
2ft 9in |
(0.84m) |
|
Height to sill |
3ft 6in |
(1.07m) |
|
Dimensions, Internal |
|
Cabin Length |
6ft 6in |
(1.98m) |
|
Max width |
3ft 9in |
(1.14m) |
|
Max height |
3ft 6in |
(1.07m) |
|
Floor area |
29ft² |
(2.69m²) |
|
Volume |
85ft³ |
(2.41m³) |
|
Baggage space |
15ft³ |
(0.42m³) |
|
Areas |
|
Wings, gross |
119.5ft² |
(11.10m²) |
|
Ailerons (total) |
9.2ft² |
(0.85m²) |
|
Trailing edge flaps (total) |
10.7ft² |
(0.99m²) |
|
Fin |
21.7ft² |
(2.02m²) |
|
Rudder |
6.76ft² |
(0.63m²) |
|
Tailplane |
27.5ft² |
(2.55m²) |
|
Elevators |
10.9ft² |
(1.01m²) |
|
Weights and Loadings |
|
Weight empty, equipped |
1,090lb |
(494kg) |
|
Max T-O weight |
1,925lb |
(873kg) |
|
Max wing loading |
16.1lb/ft² |
(78.6kg/m²) |
|
Max power loading |
12.85lb/hp |
(5.83kg/hp) |
|
Performance (at max T-O weight) |
|
Max level speed at S/L |
138 mph |
(222 km/h) |
|
Max diving speed |
195 mph |
(314 km/h) |
|
Cruising speed (75% power) at 7,500 ft |
131 mph |
(211 km/h) |
|
Econ cruising speed (60% power) at 8,000 ft |
115 mph |
(185 km/h) |
|
Stalling speed, flaps up |
63 mph |
(103 km/h) |
|
Stalling speed, flaps down |
56 mph |
(91 km/h) |
|
|
