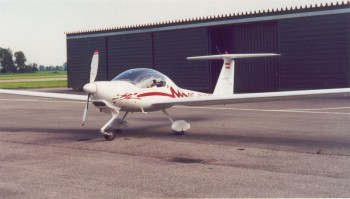

Diamond HK36 TC Super Dimona
performance and specifications
|
Performance |
|
|
|
TC 80 |
|
Engines |
80 hp |
|
Rotax 912 A3 |
|
4 stroke, |
|
4 cylinder |
|
Propeller |
hydraulic constant speed propeller with
hydraulic sails position |
|
performance / consumption |
|
|
Ground roll |
201 m |
|
Ground roll lenght(50 ft obstacle) |
338 m |
|
Rate of climb at sea level MTOW |
4,1 m/s |
|
Maximum Speed |
261 km/h |
|
Maximum cruise |
200 km/h |
|
Cruisingspeed, 65 % in 1.500 m |
167 km/h |
|
Fuel consumption |
15l/h |
|
smallest sink |
1,17 m/s |
|
best glide ratio |
01:27 |
|
Specifications / weights |
|
|
Lenght |
7,28 m |
|
Height ca. |
1,9 m |
|
Wing span |
16,33 m |
|
Wing area |
15,3 mē |
|
Seats |
2 |
|
Empty weight approx. |
555 kg |
|
Payload (Useful load) |
215 kg |
|
Max. towing load sailplane trail |
370 kg |
|
Maximum take off weight |
770 kg |
|
Usable fuel capacity standard |
80 l |
|
Fuel grades |
unleaded 95 RON 100 LL/Mogas |
|
|
