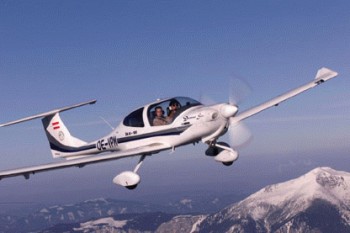

Diamond DA40-180
performance and specifications
DA40-180
Engine: Lycoming IO360-M1A 180hp @ 2700 rpm
Propeller: MT 3 blade, constant speed
|
Length |
8.00 m |
26.3 ft |
|
Height |
2.00 m |
6.6 ft |
|
Wing span |
12.00 m |
39.4 ft |
|
Wing area |
13.50 m2 |
145 sq ft |
|
Seats |
4 |
4 |
|
Max. T/O weight |
1.150 kg |
2.535 lbs |
|
Fuel capacity
|
155 l
|
41 gal
|
|
Fuel
specification |
100 LL |
|
|
Useful load
with fuel |
300 kg |
660 lbs |
| |
|
|
| Performance |
|
|
|
Takeoff
distance over 50 ft obstacle |
350 m |
1,150 ft |
|
Rate of climb,
sea level |
5,46 m/s |
1,070 ft/min |
|
Rate of climb,
10,000 ft |
2,81 m/s |
550 ft/min |
|
Cruise speed,
75% in 4,00 ft / fuel flow |
270 km/h / 39
l/hr |
145 kts / 10.5
gal/hr |
Economy cruise
speed (50%) in
10,000 ft / fuel flow |
217 km/h / 25
l/hr |
120 kts / 6.7
gal/hr |
|
Stall speed |
89 km/h |
49 kts |
|
Range (45 min.
reserves) |
1,100 km |
600 nm |
|
|
