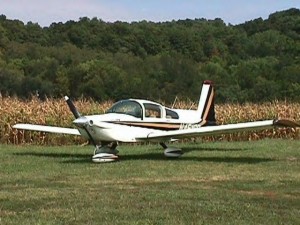

Grumman AG5B Tiger performance and specifications




Horsepower: 180 Gross Weight: 2400 lbs
Top Speed: 148 kts Empty Weight: 1360 lbs
Cruise Speed: 139 kts Fuel Capacity: 51.00 gal
Stall Speed (dirty): 53 kts Range: 530 nm

Takeoff Landing
Ground Roll: 865 ft Ground Roll 410 ft
Over 50 ft obstacle: 1550 ft Over 50 ft obstacle: 1120 ft

Rate Of Climb: 850 fpm
Ceiling: 13800 ft
