Luscombe 11 E 2004
aircraft performance and specifications

Luscombe 11E

This aircraft is a new updated version of the classic Luscombe which combines the classic lines with modern requirements.

Powerplant Teledyne Continental IO 360-ES, Fuel-injected six-cylinder 185 horsepower
Propeller Two-blade fixed pitch
Construction Aluminium clad exterior (.016 to .071)
Wing Span 38 ft. 6 in.
Wing Area 167 sq. ft.
Length 24 ft.
Power Loading 12.3 lbs. per horsepower
Wing Loading 13.7 lbs. per sq. ft.
Maximum Gross 2280 lbs.
Std. Empty Weight 1,450 lbs.
Useful Load 830 lbs.
Take Off Run 900 ft.
Landing Run 866 ft.
Rate of Climb 876 ft. / min. @ gross weight
Normal Cruise 115 kts.
Demonstrated Crosswind
21 kts.
Fuel Capacity 40 US gal. (usable)
Fuel Grade 100 LL Octane
Fuel Consumption 7.4 gph.
Range (40 gal) 575 statute miles
Controls Pilot, copilot controls with dual brakes

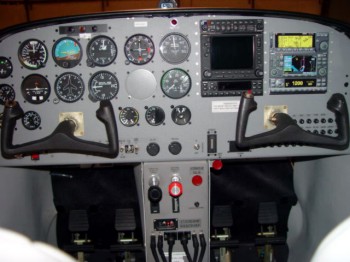

Standard Flight
Compass, altimeter, engine cluster, turn and bank, vertical speed indicator
Other Specs Six-foot clearance between ground and wing.
108" between main gear wheels.
Corrosion proofing.
