Robin 180R /
200R Remo 2004 specs aircraft performance and specifications

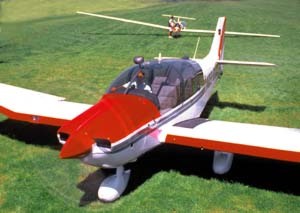

The Robin 180R and Robin 200R are very popular
glider-towing aircraft operated on hundreds of
European glider fields. The Robin 200R has a
fuel-injected engine and constant speed prop.
Equipped with 4 seats, it offers the comfort and
performance standards of a touring aircraft for
cross-country flights or mixed-duty operations
|
|
|
Robin 180R |
|
Robin 200R |
|
|
|
|
|
|
|
Engine, Lycoming |
|
O-360, 180 hp |
|
O-360, 200hp |
|
Hélice Propeller,
Sensenich |
|
fixed pitch |
|
fixed pitch
|
|
Gross weight |
|
2204 lb |
|
2425 lb |
|
Useful load |
|
900 lb |
|
992 lb |
|
Wing span |
|
28 ft 7 in |
|
28 ft 7 in |
|
Max.cruise, at 75%
power, best altitude |
|
124 kt |
|
135 kt |
|
Climbing speed |
|
|
|
|
|
-with 300 kg glider
|
|
4.7 m/s |
|
5.2 m/s |
|
-with 600 kg glider
|
|
3.5 m/s |
|
4.3 m/s |
|
Max. range, at 65%
power, best altitude |
|
495 NM |
|
447 NM |
|
Max. range, at 65%
power, best altitude with 50 l tank
|
|
1026 NM |
|
610 NM |
|
Take-off
distance with glider in tow:
|
|
|
|
|
|
-300 kg glider over
50 ft obstacle |
|
1312 ft |
|
1312 ft |
|
-600 kg glider over
50 ft obstacle |
|
1542 ft |
|
1360 ft |
|
Landing distance |
|
1542 ft |
|
1360 ft |
|
|
