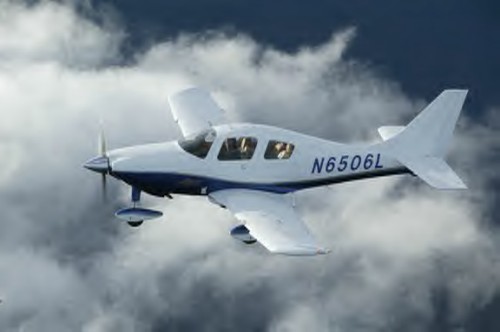

Columbia 350 performance and specifications




Specifications

power plant

Engine TCM IO-550-N, 310 hp
Propeller Hartzell 3 Blade
Time Between Overhauls (TBO) 2000 hrs.
Length 25.2 ft.
Height 9 ft.
Wingspan 36 ft
Wing Area 141.2 sq. ft.
Wing Aspect Ratio 9.2
Wing Loading 24 lbs./sq. ft.
Power Loading 10.97 lbs./hp
Maximum Fuel (US Gallons) 98 Usable
Oil Capacity 8 qts.
Wheel Track 88 in.
Wheel Base 80.2 in.

(Distance between nose gear and main gear lateral axis)

Weight Data

Takeoff Weight  3400 lbs. (Maximum)
Ramp Weight 3400 lbs.  (Maximum)
Empty Weight 2300 lbs. (Approximate)
Useful Load 1100 lbs (Approximate)
Landing Weight 3230 lbs. (Maximum)
Baggage Weight 120 lbs. (Maximum)

Speed Data

Best Rate of Climb 106 KIAS  (Sea Level)
Best Angle of Climb 80 KIAS  (Sea Level)
Maximum Operating Manoeuvring Speed 148 KIAS  (3400 lbs. gw)
Maximum Flap Extended Speed 117 KIAS  (Full Flaps)
Maximum Takeoff Flap Extended Speed 126 KIAS  (Takeoff Flaps)
Maximum Structural Cruising Speed 179 KIAS
Never Exceed Speed 235 KIAS
Stall Speed in Landing Configuration 57 KIAS
Stall Speed (Takeoff Flaps) 65 KIAS
Stall Speed (No Flaps) 71 KIAS

cruise data

Maximum Cruise Speed (8,000 ft. Density Altitude) 190 KTAS (219 mph)
Maximum Range @ Best Performance 950 Nautical Miles*
Maximum Range @ Best Economy 1320 Nautical Miles*

*Includes climb and 45 minute reserve.

performance data


Takeoff Distance (Sea Level Standard Temp.)
Ground Run (No wind at 3400 lbs. gw) 700 ft
Over 50 ft. Obstacle (No wind at 3400 lbs. gw) 1250 ft. (Total Distance)
Landing Distance (Sea Level Standard Temp.)
Ground Run (No wind at 3400 lbs. gw) 1550 ft.
Over 50 ft. Obstacle (No wind at 3400 lbs. gw) 2350 ft. (Total Distance)
Max. Rate of Climb (Sea Level Standard Temp. Full gw) 1225 fpm
Max. Rate of Climb (Sea Level Standard Temp. 3000 lbs. gw) 1400 fpm
