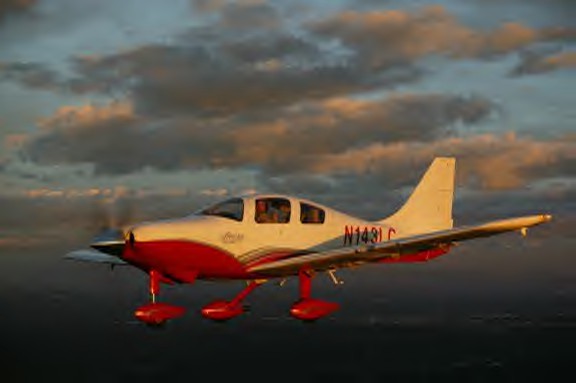

Columbia 400 performance and specifications




Specifications

power plant

Engine TCM IO-550-N, 310 hp
Propeller Hartzell 3 Blade
Time Between Overhauls (TBO) 2000 hrs.
Length 25.2 ft.
Height 9 ft.
Wingspan 36 ft.
Wing Area 141.2 sq. ft.
Wing Aspect Ratio 9.2
Wing Loading 24 lbs./sq. ft.
Power Loading 10.97 lbs./hp
Maximum Fuel (US Gallons) 98 Usable
Oil Capacity 8 qts.
Wheel Track 88 in.
Wheel Base 80.2 in.

(Distance between nose gear and main gear lateral axis)

Weight Data

Takeoff Weight 3600 lbs.   (Maximum)
Ramp Weight 3612 lbs.   (Maximum)
Empty Weight 2500 lbs.  (Approximate)
Useful Load 1100 lbs.  (Approximate)
Landing Weight 3420 lbs. (Maximum)
Baggage Weight 120 lbs.  (Maximum)



Speed Data

Maximum Operating Manoeuvring Speed 158 KIAS  (3600 lbs. gw)
Maximum Flap Extended Speed 117 KIAS  (Full Flaps)
Maximum Takeoff Flap Extended Speed 126 KIAS  (Takeoff Flaps)
Maximum Structural Cruising Speed 181 KIAS
Never Exceed Speed 230 KIAS
Stall Speed in Landing Configuration 59 KIAS
Stall Speed (Takeoff Flaps) 65 KIAS
Stall Speed (No Flaps) 69 KIAS



cruise data


Maximum Cruise Speed (18,000 ft. Density Altitude) 230 KTAS (265 mph)

performance data


Takeoff Distance (Sea Level Standard Temp.)
Ground Run (No wind at 3600 lbs. gw) 750 ft.
Over 50 ft. Obstacle (No wind at 3600 lbs. gw) 1290 ft. (Total Distance)
Landing Distance (Sea Level Standard Temp.)
Ground Run (No wind at 3400 lbs. gw) 1550 ft.
Over 50 ft. Obstacle (No wind at 3400 lbs. gw) 2350 ft. (Total Distance)
Maximum Rate of Climb 1300 fpm
