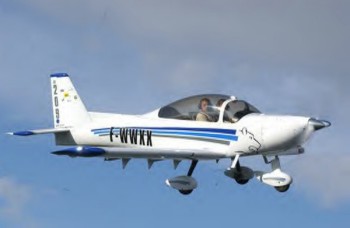

Issoire APM-20
Lionceau history, performance and specifications
|
This
aircraft was designed by ICAR in 1992 and first flew in 1995. Built in
carbon fibre composite, it was certified JAR in 1999.
|
powerplant |
80hp
Rotax 912A |
|
propeller |
Evra
two blade fixed pitch |
| fuel
capacity |
15 Imp
gallons 68 litres |
| gear |
fixed
tricycle |
| |
|
|
performance |
|
| max
speed |
135kts |
| cruise |
113kts |
| stall
speed |
44kts |
| max
rate of climb |
669ft/min |
| |
|
| weight |
empty
838lbs MTOW 1366lbs |
| |
|
|
dimensions |
|
|
wingspan |
28ft
5ins |
| wing
area |
102.3
sq ft |
| length |
21ft
7ins |
| height |
8ft
2ins |
| |
|
| |
two
seats side by side |
|
