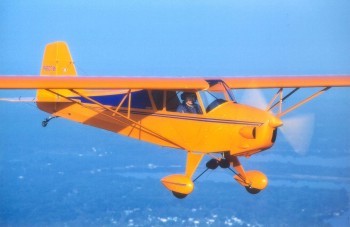

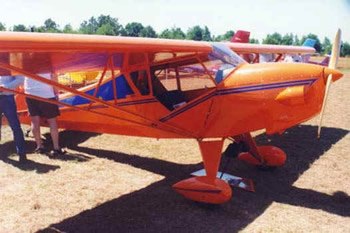

Bellaire SE

The plane is a single place, tail dragger, tractor powered by a 503 Rotax engine. The plane is offered in plans form. Welded 4130 chromoly steel is used for the  fuselage, with wood truss ribs and I beam spars in the wing covered in standard aircraft covering material.

From plans the plane will take about 2000 man hours to build. The plans are 12 sheets, 24 x36 with full size drawings of all the components. Simple hand tools, and oxy acetylene welding equipment will be required.

Equipped with the 503 Rotax engine the plane gets off the ground, cruise speed of 90 at 5,000 rpm stall 30 mph, rate of climb 1,000 feet per minute. Controls are standard three axis, stick and rudder, no flaps.
specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
 useful load
gross weight
fuel capacity
range		 Rotax 503 (48hp)
x
 18ft 6in
 5ft9in
 x
 x
 x
 x
 3501b
 7001b
 x
 300 miles

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
 service ceiling		 175ft
 1,200fpm @ sea level
x
 85mph
 250ft
 10,000ft

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed 		x
 120mph
 32mph
x

All specifications are based on manufacturer's calculations
