Aero AT 3
The Aero AT-3 is a new Polish aircraft certified in the JAR
VLA (Very Light Aircraft) category. Designed and built by Aero Sp. z o.
o. of Warsaw, the AT-3 is a low cost, low maintenance basic training
aircraft, also suitable for touring, with a cruise speed of 108-112 kts

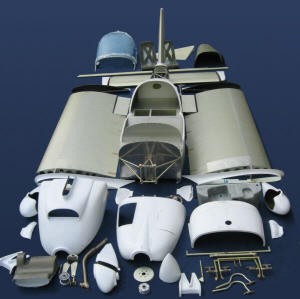

(+200 kmh) and a range of approximately 800 km. A kit version is on offer.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
Rotax 912 S 100 hp
GT-2/173/VRR-FW101SRTC or 3 blade ELPROP ground adjustable
19.29 ft
7.31 ft
24.77 ft
100,6 ft2
2
771 lb
511lb
1282 lb
18.5 gal
432nm |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
525/492 feet
730 fpm
116 KIAS
108 KIAS
525/492 feet
x |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
106 KIAS
120 KIAS
44 KIAS
x |
All specifications are based on manufacturer's
calculations |
|
