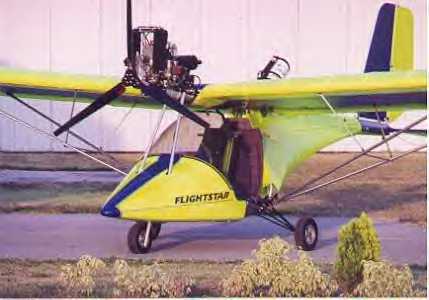

Flightstar IISL

The Flightstar 11 which was introduced in 1992, traces its roots back to the early days of ultralight aviation.  It was one of the first mass produced craft offered by a financially secure company. The design utilizes aluminium tube bolt together construction covered in Dacron sail cloth. Seating is side by side in a 42 inch wide cabin.

Building times are in the 150 to 200 hour range. The latest production models have folding wings for easy storage. The craft can be purchased in two configurations completely enclosed or with a fibreglass nose cone and windshield.

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
 useful load
gross weight
fuel capacity
range

Rotax 503FA (496 C.C. 54HP @ 6800 RPM)  2.58 /1 reduction ratio
 Ivo-prop. 3-BLADE 68”
 19 ft.7in
 7 ft 10in
 32 ft
 157 sq ft
2
 385 lbs
x
 950 lbs
 10 gal
200 miles

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
 service ceiling		 205 ft
 600 fpm
x
 65 mph
x
x

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed 		x
 96 mph
 36 mph
x

All specifications are based on manufacturer's calculations
