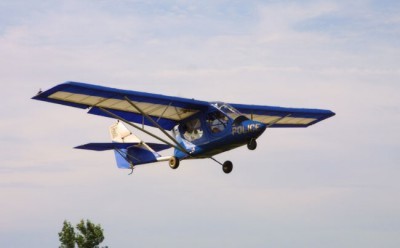

      GT 500
            (Quicksilver)








            The GT 500 introduced in 1990 is a high
            wing, tandem seating two place, trigear, in a pusher configuration.
            Control is dual control yokes and rudder pedals. The craft uses bolt
            together aluminium tube covered in Dacron sailcloth. Building times
            are in the 250 to 350 hour range. The quality and finish of this kit
            is one of the best in the industry. To date this is the first and
            only aircraft to meet, by proof of compliance, our Advance
            ultralight standards TP 10141. It did this by proving proof of
            compliance to the U.S. Sport Aeroplane category. The GT 500 comes
            standard with the 503 Rotax engine. This is a lot like putting a 4
            cylinder engine in a full size truck. The GT 500 really comes to
            life and shows is able to show her stuff when you power her up with
            a 582 or 912.

            With the 582 climb at gross is a comfortable 1000 per minute, cruise
            at 5800 will push the needle on your airspeed to 80 m.p.h.. Stall
            using flaps a comfortable 35 m.p.h.







               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                Rotax
                582/40 Dual CDI 65 hp


                3 Blade, Carbon Fibre

                72 inches

                17 to 19 degrees-LH


                20' 5"


                6' 6"


                30' 0"


                155 sq.
                ft.
                2


                575 lbs.


                425 lbs.


                1000 lbs.


                16 U.S. gal.

                x |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |


                220 ft.


                650 fpm.


                81 mph.


                79 mph.


                260 ft
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                90 mph.


                103 mph


                45 mph.


                51 mph |


            All specifications are based on manufacturer's
            calculations
   |




             |
