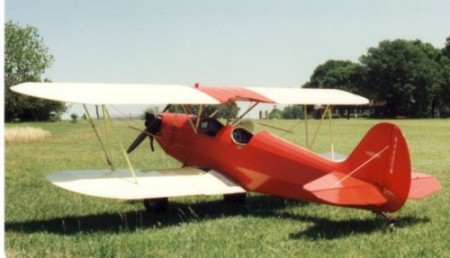

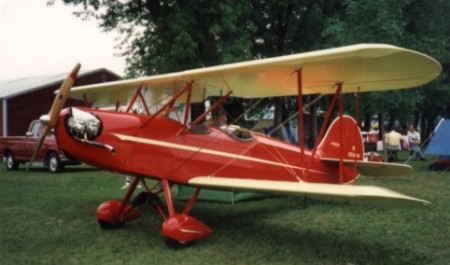

The Hatz CB-1 Biplane is a two
place with generous wing area - enough to make flying a pleasure on
as little as 85 HP. Low landing speed, slow flight capabilities,
plus a comfortable 90 mph cruise has been combined in an airplane
still small enough for the homebuilder to undertake. Aircraft are
plans built but many parts are available.
A straight-forward design with
simple details and a minimum of time consuming jig work is the
result of many hours of planning and testing.
Construction: steel tube fuselage
and tail; spruce spars with truss rib wing construction; bungee
shocks for the gear; 6 x 6 wheels with brakes; dual controls; space
for overnight bag on shelf in front cockpit; fuel capacity 33
gallons in two tanks, or 20 gallons in one tank (centre section).
Cont. 0-200 HP
rate of climb
landing distance, ground roll
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
All specifications are based on manufacturer's
