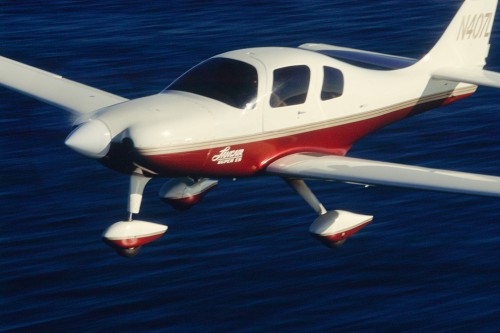

       Lancair Super ES





            Derived from the award-winning, world record setting Lancair IV, the
            ES and Super ES are the result of nearly 10 years of research,
            innovation and pilot input. These visionary, four-place aircraft
            have it all; high climb rate, long endurance, slow landing speed,
            premium comfort, all packaged in a very elegant, streamlined design.
            They can haul a load with speed that is unmatched (200-225 mph) for
            a simple, fixed gear aircraft. What’s more, they are as easy to
            assemble as they are to fly.


               | specifications



                  |  | Lancair ES | Lancair Super ES |

                | powerplant propeller
 length
 height
 wing span
 wing area
 seats
 empty weight
 useful load
 gross weight
 fuel capacity
 range
 | Continental IO-360-ES
                210 h.p. 2 blade, constant speed
 25 ft
 8 ft
 35.5 ft
 140 sq ft
 4
 1900 lbs
 x
 3200 lbs
 75 gallons
 1450 sm (no reserve)
 | Continental IO-550-G

                300 h.p. 3 blade, constant speed
 25 ft
 8 ft
 35.5 ft
 140 sq ft
 4
 2000 lbs
 x
 3200 lbs
 75 gallons
 1280 sm  (no reserve)
 |
            performance



                | takeoff distance,
                ground roll rate of climb
 max speed
 cruise speed
 landing distance, ground roll
 service ceiling
 | 600 ft 1250 fpm
 x
 192-200 mph
 800 ft
 18,000 ft
 | 600 ft 1550 fpm
 x
 220-225 mph
 800 ft
 18,000 ft
 |
            limiting and recommended speeds


                | design manoeuvring speed (Va) never exceed speed (Vne)
 stall, power off (Vsl)
 landing approach speed
 | x x
 57 mph
 x
 | x x
 57 mph
 x
 |  All specifications are based on manufacturer's
            calculations
 |  |  |
