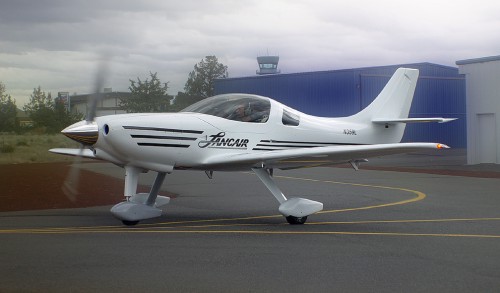

       Lancair Legacy 2000 Fixed Gear





            The Legacy Fixed Gear kitplane is a simple, economical version of
            the existing retractable gear Legacy. Other than the permanent down
            and locked wheels, the fixed gear Legacy is very similar to its
            retractable gear counterpart. Sharing the fuselage, wing and tail
            with the retractable gear Legacy makes for balanced and quick
            handling characteristics while reducing the cost with fibreglass
            construction. The new Legacy FG is designed to accept a four

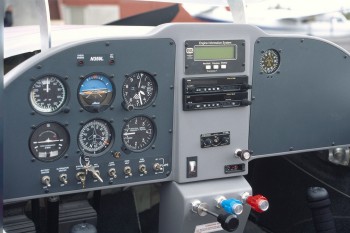

            cylinder Lycoming engine with a conventional instrument panel to
            lower costs and reduce build time. Fitted with a 200 hp Lycoming
            IO-360A1B6 powerplant, the Legacy FG upholds Lancair's performance
            reputation with a typical cruise of over 210 mph and a range of more
            than 1,300 statute miles. Legacy FG builders will also have the
            option of taking advantage of Lancair's highly regarded builder
            assist program.



               | specifications


                | powerplant propeller
 length
 height
 wing span
 wing area
 seats
 empty weight
 useful load
 gross weight
 fuel capacity
 range
 | Lycoming IO-360-A1B6

                        200hp 2 Blade, Constant Speed
 22 ft
 x
 25.5 ft
 82.5 sq ft
 2
 1300 lbs.
 900 lbs.
 2200 lbs.
 65 Gal.
 1350 sm
 |
            performance



                | takeoff distance,
                ground roll rate of climb
 max speed
 cruise speed
 landing distance, ground roll
 service ceiling
 | 900 ft 1850 fpm
 x
 210 mph
 x
 18,000 ft
 |
            limiting and recommended speeds


                | design manoeuvring speed (Va) never exceed speed (Vne)
 stall, power off (Vsl)
 landing approach speed
 | x x
 65 mph
 x
 |  All specifications are based on manufacturer's
            calculations
 |  |  |
