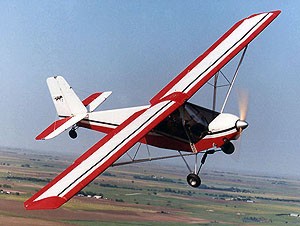

S-4/5 Coyote (Rans)

In March 1983, the first Coyote flew. This humble little one-seater has grown into a highly acclaimed aircraft around the world. The design endures today as a highly-evolved kitplane with the original design goal intact. The goal was to build a kitplane that looks, flies and handles like a conventional plane, but has a very low build time. Today's Coyote, even with its added sophistication and extra performance, builds in 180 hrs. Low build times are possible due to the high level of prefinished parts, pre-sewn skins and ease of assembly. A Coyote can be built in the confines of an average garage using normal shop tools and skills. First time and experienced kit builders are attracted to the Coyote because of the ease of construction and quality. Optional doors can mean year-around flying and added cruise speed.

specifications

  42 HP 47 HP
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
Rotax 447
66 in to 68 in
17 ft.
72 in
29.5 ft
127 sq ft
1
315 lbs.
272 lbs.
587 lbs.
9 gal US
156 miles.
Rotax 503
66 in to 68 in
17 ft.
72 in
29.5 ft
127 sq ft
1
325 lbs
262 lbs
587 lbs.
9 gal US
157.5 miles

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
100 ft.
700 fpm.
x
65 mph
100 ft.
12,500 ft
80 ft
800 fpm
x
70 mph
100 ft.
12,500 ft

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
95 mph
31 mph
x
x
95 mph
31 mph
x

All specifications are based on manufacturer's calculations
