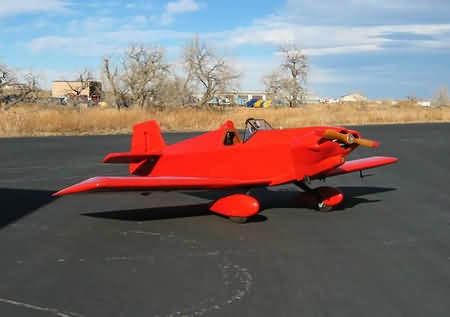

Taylor Monoplane
First post-war design to come from England
for construction in small spaces with
minimum tools and materials; semi-aerobatic.
Aimed exclusively at lower power range such
as the VW engine.
The Taylor Monoplane was designed by the late John
Taylor. Plans built, all wood construction. Rugged for +/- 4.5G (at
700 pounds) construction. Very affordable, easy to build aircraft.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
VW 1500 cc HP Range40-60
x
15 ft
4.1 ft
21 ft
76 sq. ft
1
430 lb
660 lb
x
7.5 gal
90 n.m
|
performance
takeoff
distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
350 ft
950 fpm
115 mph
100 mph
750 ft
13,500 ft |
limiting and recommended speeds
design
manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
x
40 mph
x |
All specifications are based on
manufacturer's calculations
|
|
|
