T
oxo

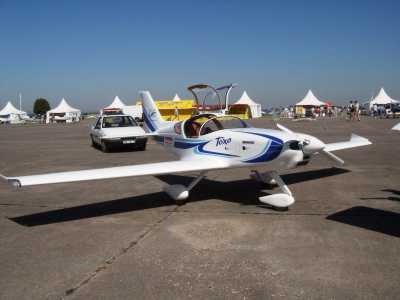

TWO SEATER plane, built with the latest technology in materials and aerospace technique. Made of composite construction, which allows shapes, curves and strength unfeasible with other kinds of material, resulting in an exceedingly strong structure.

ITS LIGHT weight, laminar profiles, and aerodynamic lines gives the Toxo greater performance and lower operating costs than planes with other types of construction in general aviation.

THE TOXO is an ideal plane for both business and holiday trips, with characteristics such as ease of manoeuvring, long range, short-field capability, comfort, enhanced cockpit visibility, and superior cockpit arch. Powered with engines from 80 to 180 HP.

TO ENSURE a safe and easy flight, the Toxo undergoes an exhaustive program of static, dynamic, load, fatigue, and flight tests.

CONTROLS: Two control sticks, with smooth and positive push-pull rod control system. Nose steering wheel. Centre console houses throttle, mixture and fuel control valve.

MATERIALS: Aeronautical quality aluminium, steel, screws and hardware throughout.

INSTRUMENT PANEL: Large and accessible instrument panel, with three differentiated areas to include ventilation and a glove compartment.



specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range
Rotax 80 HP
x
5,40 m
2 m
7,96 m
8,7 m2
2
x
x

x
60 L
x

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling
160 m
7,5 m/s
260 km/h
220 km/h
250 m
4.500 m

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed
x
350 km/h
64 km/h
90 km/h

All specifications are based on manufacturer's calculations
