Mil Mi-24 Hind

In the middle of the 60s, while the western
countries were looking the helicopter mainly as a transport and rescue
machine, the Soviet Army look at them as the air counterpart of the battle
tanks.
Heavy armed versions of the Mi-8 Hip were in service in those years when
the Mil bureau start working in a new prototype called A-10 . This new
helicopter, designed primary as an anti tank weapon began tests in 1970
and was seen for first time by NATO in East-Germany in 1972. The A-10 soon
reached a speed record of 368 km/h
The first versions uses a standard helo cockpit with pilots side-by-side,
but in 1975 would appear the Hind-D with the now traditional attack
cockpit in a tandem configuration
The later versions, as the Hind-E , uses the more sophisticated AT-6
Spiral missiles instead of the AT-2 Swatter and a 23 mm cannon replacing
the 12,7 mm machine gun in the turret
In their better moment, more than 1000 Hinds were in service in the Red
Army and they were extensively used in Afghanistan where they formed teams
with the attack aircraft Sukhoi Su-25 Frogfoot.

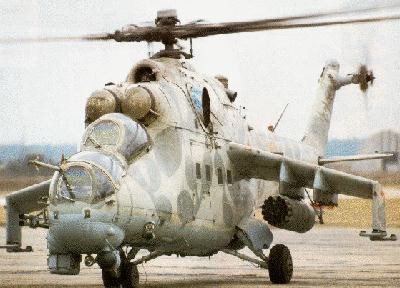

The Mi-24 "Hollywood" variant

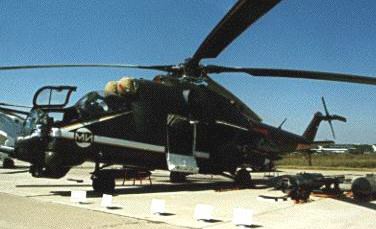

Mi-35 Export variant
Functions:
Attack /
Air-Support / Assault
First Flight : September 19, 1969
Crew / Load: 3 + 8
Hind D
Engines: 2 * Isotov TV3-117 of 2200 hp
Top Speed: 350 km/h
Range: max. 800 km
Ceiling: 4.500 m
Weight: Empty: 6.500 kg -- Max: 11.500
Rotor Span: 17 m
Length: 17 m
Height: 4.25 m
Disc Area: 227 m2
|
