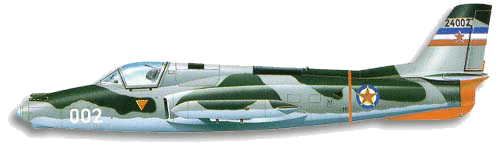

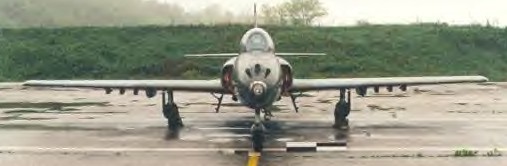

Soko J-1 Jastreb
|
Origin: |
Yugoslavia |
|
Type: |
light attack
aircraft |
|
Max Speed: |
443 kt / 510
mph |
|
Max Range |
1520 km / 944
miles |
|
Dimensions: |
span 11.68 m /
38 ft 3.8 in
length 10.88 m / 35 ft 8.3 in
height 3.64 m / 11 ft 11.3in |
|
Weight: |
empty 2,820 kg
/ 6,217 lb
maximum take-off 5,100 kg / 11,244 lb |
|
Powerplant: |
one 1361-kg
(3,000-lb) dry thrust Rolls-Royce Viper Mk 531 turbojet |
|
Armament: |
three 12.7-mm
(0.5-in) machine guns with 135 rounds per guns; provision for 500 kg
(1,102 lb) of disposable stores, including bombs, bomblet containers,
flares, rocket-launcher pods and gun pods carried on two inboard
hardpoints, and for six 127-mm (5-in) air-to-surface rockets on
outboard attachments |
|
|
