History:
In early 1941, Grumman began design-work on a new twin-engined fighter
for the War Department, for use on a planned larger Midway-class
aircraft carrier. On June 30, 1941, Grumman was awarded a contract to
build two prototypes, the first of which flew in December 1943. The

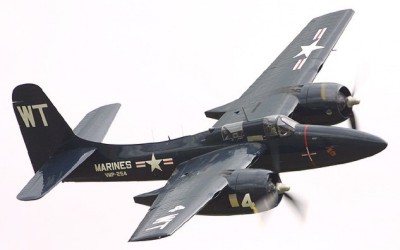

XF7F-1 Tigercat was unusual for a fighter,
with its shoulder-mounted wings, twin underwing-mounted engines,
all-metal construction and tricycle landing gear.
Before the prototype
even flew for the first time, Grumman was contracted to build 500 of
them for the US Marine Corps, to be used as close-support aircraft for
the massive landing operations then underway in the Pacific. Delivery
began in April 1944. The first 34 F7F-1s were
similar to the prototypes, then 30 two-seat night-fighter variants
(called F7F-2Ns) were produced. Next, 189
single-seat models called F7F-3s were built
which featured slightly more powerful R-2800 engines, slightly larger
vertical stabilizers, and a 7% increase in fuel capacity.
Much of the original
order for Tigercats was cancelled after VJ-Day, and they never saw
operational service in WWII. Less than 100 Tigercats were built after
the war as night-fighters (F7F-3N and
F7F-4N), electronic reconnaissance (F7F-3E)
and photo-reconnaissance (F7F-3P) platforms,
but higher-performance jet-powered airplanes soon replaced the Tigercat
in the US Marine Corps. During the 1960s and 1970s, a few were
gradually sold as surplus and converted to fire bombers or aerial
photography ships.
Nicknames:
T-Cat
Specifications
(F7F-3):
Engines: Two 2,100hp Pratt &
Whitney R-2800-34W Double Wasp 18-cylinder radial piston engines
Weight: Empty 16,270 lbs.,
Max Takeoff 25,720 lbs.
Wing Span: 51ft. 6in.
Length: 45ft. 4.5in.
Height: 16ft. 7in.
Performance:
Maximum Speed at 22,200 ft:
435 mph
Cruising Speed at 5,000 ft:
222 mph
Initial Climb Rate: 4,500
feet per minute
Ceiling: 40,700 ft.
Range: 1,200 miles
Armament:
Four 20mm (0.79-inch) cannon in
wing roots
Four 12.7mm (0.5-inch) machine guns
in nose
One torpedo under fuselage
2,000 lbs. of bombs (1,000 lbs.
under each wing)
Number Built:
364 |
