The series of Yakovlev
fighters, which originated with the Yak-1 of 1941, was one of the most
important families of combat planes built by the Soviet Union during
World War 11. A total of more than 30,000 were built (including 16,769
Yak-9s), and their career lasted well beyond the end of the conflict,
continuing until the 1950s. The Yak-9P, the last and best to make use
of the airframe, was in fact used during the Korean War.

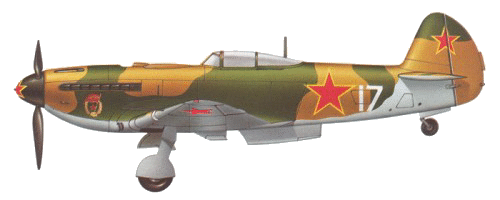

A Yak-9U of the Guards Regiment, Soviet Air Force 1944
The Yak-9 was
originally a development of the Yak-7 fighter of 1941, of which 6,399
were built. It was from the Yak-7D, an experimental variant, that the
new model was derived. The need to build a better series of these
aircraft was dictated above all by the need to improve their range. The
half-wings were partially redesigned, while the pilot's cockpit was
moved slightly farther back, and the position of the radiator in the
belly was also altered. Production began in the summer of 1942, and the
Yak-9 was delivered to the fighter units in October.
intensive career (which began during the battle of Stalingrad) did not
prevent it from being updated, a process that initially regarded its
armament. In the Yak-9M version, a 12.7 mm machine gun was added to the
20 mm cannon and the original machine guns, while the cargo capacity of
the Yak-9B model was exploited to the full, and the aircraft could
carry a maximum bomb load of 883 lbs (400 kg). These were followed by
the Yak-9T, tested in December 1942 and operational from the beginning
of the following year. It was designed for antitank use being armed
with the 37 mm Nudelmann-Suranov cannon.
In the 1943 summer a
new variant, the Yak-9D, entered service. It had a more powerful engine
and was intended for the role of long-range escort fighter. In this
aircraft the increase in range, which eventually surpassed 807 miles
(1,300 km), was obtained by reducing the defensive armament until it
consisted of a 20 mm cannon and a single 12.7 mm calibre machine gun. A
further improvement was made in the Yak-9DD, a version derived from it,
in which the range was increased to 1,242 miles (2,200 km). These
aircraft were mainly used to escort the formations of American bombers
which took off from bases in Great Britain to carry out raids on oil
fields in Rumania.
The last variant to be
built during the war was the Yak-9U, whose prototype took to the air in
December 1943. In this model, Yakovlev substantially renewed the
airframe, redesigning its entire basic structure (which became
all-metal, like its covering) and remarkably improving its aerodynamic
lines. In addition, the span and surface area of the wings was
increased, while a more powerful engine, the 1,650 hp Klimov M-107A,
was adopted. This improved the performance of the aircraft remarkably,
increasing the maximum speed of 372 mph (600 km/h) at 11,482 ft (3,500
m) achieved by the Yak-9 D to approximately 434 mph (700 km/h) at 18,
092 ft (5,500 m). It was from this aircraft that the last postwar
version, the Yak-9P, was subsequently developed.
In addition to its
intensive and lengthy career in the units of the VVS, the Yakovlev
Yak-9 also equipped numerous foreign units that had chosen to fight in
the Soviet Union. These included the Poles of the 1st Warsaw Fighter
Regiment and the French of the Groupe de Chasse Normandie-Niernen,
whose pilots chose the Yak-9 after having tried the American Bell P-39
and the Hawker Hurricane. After the war, apart from the Soviet Union,
Yak-9 was adopted above all by Bulgaria, Poland, and Yugoslavia.
from the Yak-7D1, and initial series production from mid 1942. Armament
of one 20 mm ShVAK cannon and one 12.7 mm (0.50 in) UBS machine gun,
plus six RS-82 rockets or two 220 lbs (100 kg) FAB-100 bombs.
Standard version but
with the addition of one more 12.7 mm (0.50 in) UBS machine gun.
Long range escort
version with additional fuel capacity extending the range up to 826
miles (1330 km). This model also introduced the the Klimov M-105PF-3
engine. Served from the summer of 1943 onwards.
Tested in December 1942
with the 11P-37 anti-armour cannon and wing racks for 5.5 lbs (2.5 kg)
B hollow charge bombs in special containers. Other Yak-9Ts had the
MP-20,VYa-23 or the MP-23VV cannon. Entered service in early 1943.
This version saw
limited service in 1943, armed with a 45 mm cannon.
Special bomber version
built in limited numbers. It had an internal bay behind the cockpit
which held four 220 lbs (100 kg) FAB-100 bombs or containers with 128
PTAB light bombs.
A limited number of
fighters converted into a night fighter role equipped with a
searchlight and the RPK-10 radio compass.
Ultra long range escort
fighter similar to the Yak-9D but with even more fuel capacity bringing
the maximum range up to 1,367 miles (2200 km). This aircraft was used
to escort US heavy bombers on shuttle raids against the Romanian oil
fields. It also equipped the 236th IAD (fighter division) based at Bari
in southern Italy and operated for a time over Yugoslavia in support of
A prototype aircraft
that flew in December 1943 with a wing of all metal basic construction.
Initially powered by the M-105PF-2 engine, the more powerful VK-107A
engine was phased into production aircraft from late 1944 onward.
A version of the Yak-9U
with light alloy stressed skinning over the entire airframe. Entered
service in early 1945.
Tandem two seat
In addition to the
engine mounted 20 mm cannon, this version had one or two fuselage
mounted synchronised 20 mm cannon added.
Was a tactical or
photoreconnaissance version with specialized equipment.
A high altitude
experimental aircraft with the M-105PD engine incorporating a two-stage
gear driven supercharger and armed with a single 20 mm cannon. Its
believed small numbers of this type, did see action against high flying
German reconnaissance aircraft late in the war.
Aleksandr Sergeyevich Yakolev
1,260 hp (940 kw) Klimov M-105PF 12-cylinder Vee liquid cooled engine.
Maximum speed 372 mph (600 km/h) at 11,482 ft (3500 m); service ceiling
32,894 ft (10000 m).
Range: 825 miles
(1330 km) on internal fuel.
6,108 lbs (2770 kg) with a maximum take-off weight of 6,792 lbs (3080
32 ft 10 in (10.00 m); length 24 ft 11 in (8.50 m); height 9 ft 10 in
(3.00 m); wing area 188.3 sq ft (17.50 sq m).
Armament: One 20
mm ShVAK cannon with 100 rounds and two 12.7 mm (0.50 in) UBS machine
guns with 250 rounds each plus two 220 lbs (100 kg) bombs.
Yak-9D, Yak-9M (one additional machine gun), Yak-9B (capable of
carrying 883 lbs (400 kg) of bombs), Yak-9T (one 37 mm
Nudelmann-Suranov cannon for anti-tank operations), Yak-9K (45 mm
cannon), Yak-9DD (increased range), Yak-9MPVO, Yak-9U (one Klimov 1,650
hp (1230 kw) M-107A and a redesigned airframe), Yak-9UT, Yak-9UV,
Yak-9R, Yak-9PD, Yak-9P (late and post war production).
Soviet Union, Bulgaria, Poland, Yugoslavia, Free French Forces.
