attitude indicator

basic components and operation

The Attitude Indicator shows rotation about both the longitudinal axis to indicate the degree of bank, and about the lateral axis to indicate pitch (nose up, level or nose down). It utilizes the rigidity characteristic of the gyro. It is gimballed to permit rotation about the lateral axis indicating pitch attitude, and about the longitudinal axis to indicate roll attitude. Once powered up, the indicator is maintain in a fixed position no matter what the aircraft attitude may be.

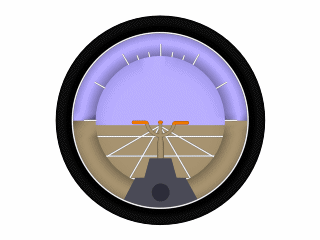

The principal parts of interest to the pilot are:

  1. The miniature wings attached to the case remain parallel to the wings of the aircraft.

  2. The horizon bar which separates the top (light) and bottom (dark) halves of the ball

  3. The degree marks on the upper periphery of the dial. The first 3 on both sides of centre are 10 degrees apart, then 60 degree bank marks, and 90 degree bank arks.

   Fifteen degrees of bank is called a standard rate turn.


The adjustment knob is used to adjust the wings up or down to align with the horizon bar. This allows adjustment to the height of the pilot. Preferably, the adjustment should be made when level on the ground.

When the wings are aligned with the horizon bar, the aircraft is in level flight. If the wings are above the horizon bar, the aircraft is in a climb. Wings below the horizon bar indicates a decent. The upper blue part of the ball represents the sky. The miniature airplane wings (fixed to the case) represent the wings of the aircraft. In the past, the instrument has been referred to as "an artificial horizon". When in a left turn, the blue portion of the ball will have rolled to the right, as though you were looking at the horizon over the nose of the aircraft. In a right turn, the blue portion will have rolled to the left.

Vacuum-Driven Attitude Indicators

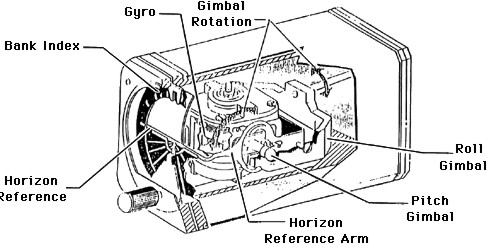

The rotor, mounted in a sealed housing, spins in a horizontal plane about the vertical axis. The housing pivots about the lateral axis on a gimbal, which in turn is free to pivot about the longitudinal axis. The instrument case is the third gimbal necessary for universal mounting. The horizon bar is linked to the gyro by a lever, attached to a pivot on the rear of the gimbal frame and connected to the gyro housing by a guide pin.


climbing turn to the right

When the attitude indicator is in operation, gyroscopic rigidity maintains the horizon bar parallel to the natural horizon. When the pitch or bank attitude of the aircraft changes, the miniature aircraft, being fixed to the case, moves with it. These movements of the instrument case with respect to the gyro are shown on the face of the instrument as pitch and bank attitude changes of the miniature aircraft with respect to the horizon bar.

Air is sucked through the filter, then through passages in the rear pivot and inner gimbal ring, then into the housing, where it is directed against the rotor vanes through two openings on opposite sides of the rotor. The air then passes through four equally spaced ports in the lower part of the rotor housing and is sucked out into the vacuum pump or venturi tube.

The chamber containing the ports is the erecting device that returns the spin axis to its vertical alignment whenever a precessing force, such as friction, displaces the rotor from its horizontal plane. The four exhaust ports are each half-covered by a pendulous vane, which allows discharge of equal volumes of air through each port when the rotor is properly erected. Any tilting of the rotor disturbs the total balance of the pendulous vanes, tending to close one vane of an opposite pair while the opposite vane opens a corresponding amount. The increase in air volume through the opening port exerts a precessing force on the rotor housing to erect the gyro, and the pendulous vanes return to a balanced condition.

Limits

The limits of the instrument refer to the maximum rotation of the gimbals beyond which the gyro will tumble. The older type vacuum-driven attitude indicators have bank limits of approximately 100° to 110°, and pitch limits of 60° to 70°. If, for example, the pitch limits are 60° with the gyro normally erected, the rotor will tumble when the aircraft climb or dive angle exceeds 60°. As the rotor gimbal hits the stops, the rotor precesses abruptly, causing excessive friction and wear on the gimbals. The rotor will normally precess back to the horizontal plane at a rate of approximately 8° per minute. The limits of more recently developed vacuum-driven attitude indicators exceed those given above.

Caging

Many gyros include a manual caging device, used to erect the rotor to its normal operating position prior to flight or after tumbling, and a flag to indicate that the gyro must be uncaged before use. Turning the caging knob prevents rotation of the gimbals and locks the rotor spin axis in its vertical position. Because the rotor is spinning as long as vacuum power is supplied, normal manoeuvring with the gyro caged wears the bearings unnecessarily. Therefore, the instrument should be left uncaged in flight unless the limits are to be exceeded.

In the caged position, the gyro is locked with the miniature aircraft showing level flight, regardless of aircraft attitude. When uncaged in flight, in any attitude other than level flight, the gyro will tend to remain in an unlevel plane of rotation with the erecting mechanism attempting to restore the rotor to a horizontal plane. Therefore, should it be necessary to uncage the gyro in flight, the actual aircraft attitude must be identical to the caged attitude (that is, straight and level), otherwise, the instrument will show false indications when first uncaged.

Errors

Errors in the indications presented on the attitude indicator will result from any factor that prevents the vacuum system from operating within the design suction limits, or from any force that disturbs the free rotation of the gyro at design speed. Some errors are attributable to manufacturing and maintenance. These include poorly balanced components, clogged filters, improperly adjusted valves, and pump malfunction. Such errors can be minimized by proper installation and inspection.

Other errors, inherent in the construction of the instrument, are caused by friction and worn parts. These errors, resulting in erratic precession and failure of the instrument to maintain accurate indications, increase with the life of the instrument.

Another group of errors, associated with the design and operating principles of the attitude indicator, are induced during normal operation of the instrument. A skidding turn moves the pendulous vanes from their vertical position, precessing the gyro toward the inside of the turn. After return of the aircraft to straight-and-level, coordinated flight, the miniature aircraft shows a turn in the direction opposite the skid. During a normal turn, movement of the vanes by centrifugal force causes precession of the gyro toward the inside of the turn.

Errors in both pitch and bank indications occur during normal coordinated turns. These errors are caused by the movement of the pendulous vanes by centrifugal force, resulting in the precession of the gyro toward the inside of the turn. The error is greatest in a 180° steep turn. If, for example, a 180° steep turn is made to the right and the aircraft is rolled out to straight-and-level flight by visual references, the miniature aircraft will show a slight climb and turn to the left. This precession error, normally 3° to 5°, is quickly corrected by the erecting mechanism. At the end of a 360° turn, the precession induced during the first 180° is cancelled out by precession in the opposite direction during the second 180° of turn. The slight precession errors induced during the roll-out are corrected immediately by pendulous vane action.

Acceleration and deceleration also induce precession errors, depending upon the amount and extent of the force applied. During acceleration the horizon bar moves down, indicating a climb. Control applied to correct this indication will result in a pitch attitude lower than the instrument shows. The opposite error results from deceleration. Other errors, such as "transport precession" and "apparent precession," relate to rotation of the earth and are of importance to pilots and navigators concerned with high speed and long-range flight.

The application of the foregoing errors as they affect instrument interpretation will be treated later in Chapter V, "Attitude Instrument Flying - Airplanes."

Electric Attitude Indicators.

In the past, suction-driven gyros have been favoured over the electric for light aircraft because of the comparative simplicity and lower cost. However, the increasing importance of the attitude indicator has stimulated development of improved electric-driven gyros suited to light plane installation. Improvements relating to basic gyro design factors, easier readability, erection characteristics, reduction of induced errors, and instrument limitations are reflected in several available types. Depending upon the particular design improvements, the details among different instruments will vary as to the instrument display and cockpit controls. All of them present, to a varying degree, the essential pitch and bank information for attitude reference.

Electric gyros may be remotely located, with the gyro assembly mounted at some convenient location other than behind the instrument panel, and with the indicator assembly on the instrument panel driven through a servo motor. Another type is a simpler unit incorporating the gyroscope motor in the instrument case integral with the indicator assembly. The H-6B attitude indicator and J-8 gyro-horizon are representative of this type.
